ST 034

Описание

The ST 034 Multifunctional Detection device is used to detect and locate various appliances used for furtive acquisition of information (hereinafter called ‘Special Technical Means’, or ‘STM’), to reveal natural and artificial channels of information leakage.

The STM with transfer of information by radio channel. Such devices include first of all:

  • Radio microphones.
  • Telephone radio broadcasting devices.
  • Radio stethoscopes.
  • Wireless Video cameras.
  • Mobile telephones and modems of CDMA, GSM, UMTS, DECT standards used without authorization
  • The devices using digital channels of data transmission of WLAN and BLUETOOTH standards.
  • Radio beacons for object movement tracking.

The STM that use AC power, telephone, security and fire alarm lines for information transfer.

The STM characterized by information transmission in infrared range.

Категория:

Ask question

Product description
Documentation and Drivers
Accesories

Specifications +

UHF detector — frequency meter
Frequency range, MHz
20-3000
Sensitivity at input, dBm
< minus 50 (20 MHz — 2000 МHz)
< minus 40 (2000 МHz — 3000 МHz)
Dynamic range of indication, dB
50
Sensitivity of frequency meter, dBm
< minus 30 (100 МHz — 2000 МHz)
< minus 25 (2000 MHz — 2500 МHz)
Frequency measurements accuracy, MHz
±0.1
Identification of protocols
GSM, DECT, WLAN, BLUETOOTH
SHF detector
Frequency range, GHz
2.5-10
Threshold sensitivity, W/cm²
2.5*10-10
Dynamic range, dB
32
Type of antenna
log-periodic
Polarization
Horizontal
Antenna beamwidth, degrees
60-90
Wire line Anylaser
Frequency range, MHz
0,05-15
Sensitivity, at s/n 10 dB, dBμV
<35
Filter bandwith, kHz
20
Demodulation types
AM, FM
Maximum allowable input voltage, V
250
Differential Amplifier
Frequency range, kHz
0.3-12
Common-mode rejection ratio (CMRR), dB
>60
Input impedance, kOm
75
Input Voltage Noise, μV
<2
Dynamic Range, dB
50
Maximum allowable input voltage, V
250
Magnetic Field detector
Frequency range, kHz
0,4-12
Threshold sensitivity, Т/Hz1/2
10-11
Dynamic Range, dB
50
Acoustic analyzer
Frequency range, kHz
0.3-8
Dynamic Range, dB
50
IR detector
Spectral range, nm
750-1100
Frequency range, kHz
0.3-300
Threshold sensitivity, W/Hz1/2
≤10-13
Angle of sight, degrees
30
Power
Power supply
Li -pol acc. 3.7V
Maximum consumed current, mA
<100
PC transfer interface
USB
Dimensions, mm
Main Unit
125x62x28
Package
250x160x140
Weight, kg
Main Unit
0.25

List of equipment +

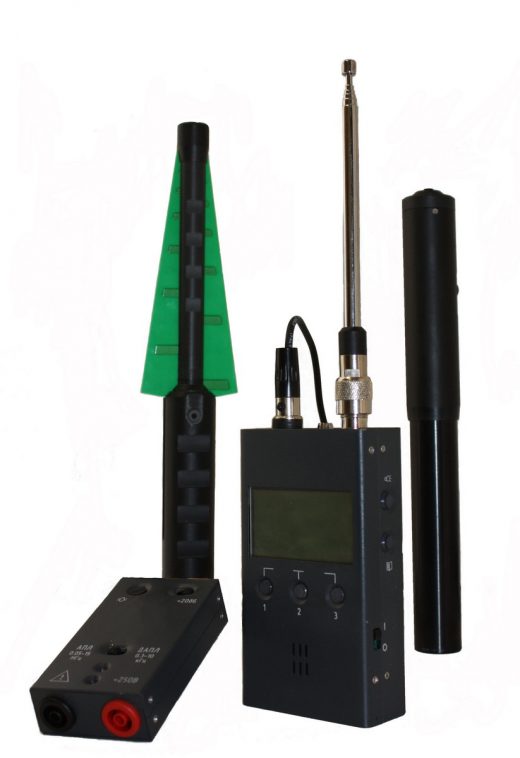

Complete set
Main Unit 1
Universal adapter of wire line 1
Telescopic antenna 1
UHF antenna 1
Test Leads 1
Cable USB 1
Power Supply unit 1
Mini Cd 1
User Manual 1
Packaging Bag 1
Additional complete set
SHF antenna detector ST03.SHF 1
Magnetic field probe ST034.MF 1
Acoustic probe ST034.A 1
